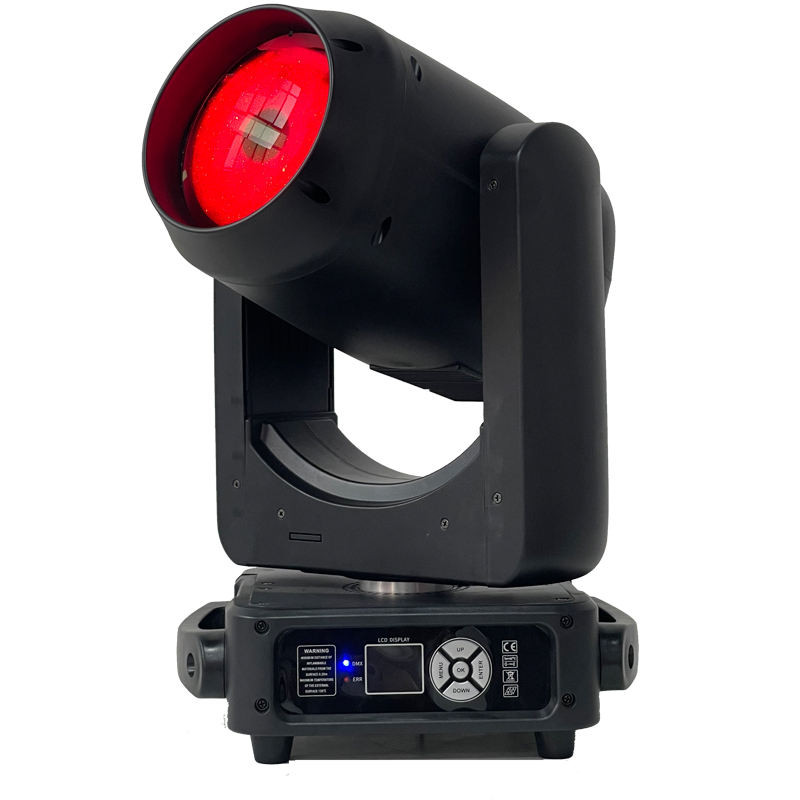

AC-B380C

Light sourse: 380 lamp

Ballast: Electronic



Optical system

Beam angle: 0-4°



Main feature

Gobo wheel: 17 gobo+white

Color wheel: 14 colors+white,with one rainbow color wheel

Prism 1: 8 rotation prism

Prism 2: 3 layer rotation prism

2 prisms stackable

Dimmer: 0-100% Linear dimming

Strobe: 1-13 times/second, adjustable speed





Control

Setting & Addressing: two-row LCD display & 4 control buttons

Control mode: DMX 512, Auto, Master-slave,

Channel: 16CH



Thermal specification

Maximum ambient temperature: 40 °C(104℉)

Maximum surface temperature: 90 °C(194℉)

Minimum operating temperature: -20 °C(68℉)



Electrical specification and connections

Power supply:AC100-240V  50/60Hz

Power consumption: 400 W

LED Source: Front: 380 lamp

Power connector in/out: powerCON/Out

DMX data in/out: Locking 3-pin XLR



Movement

Pan/Tilt movement: 540 Pan,270 tilt infinite rotating



Approvals

CE Compliant

ROSH Compliant



Mechanical specification

Weight: 16.53 kg

Product Size：350×280×553mm

Ingress protection rating: IP20
